2014 Williams FW36 revealed

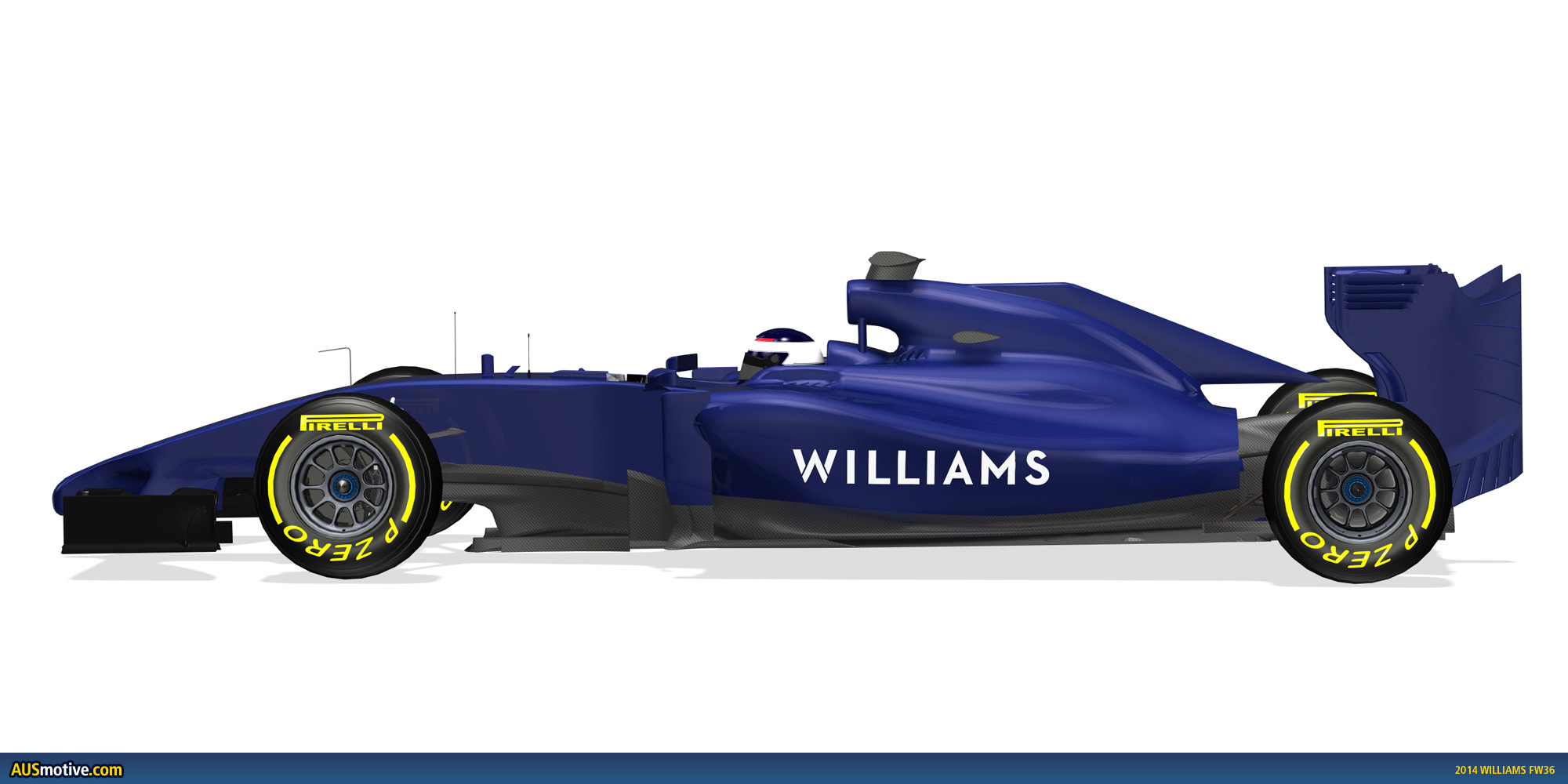

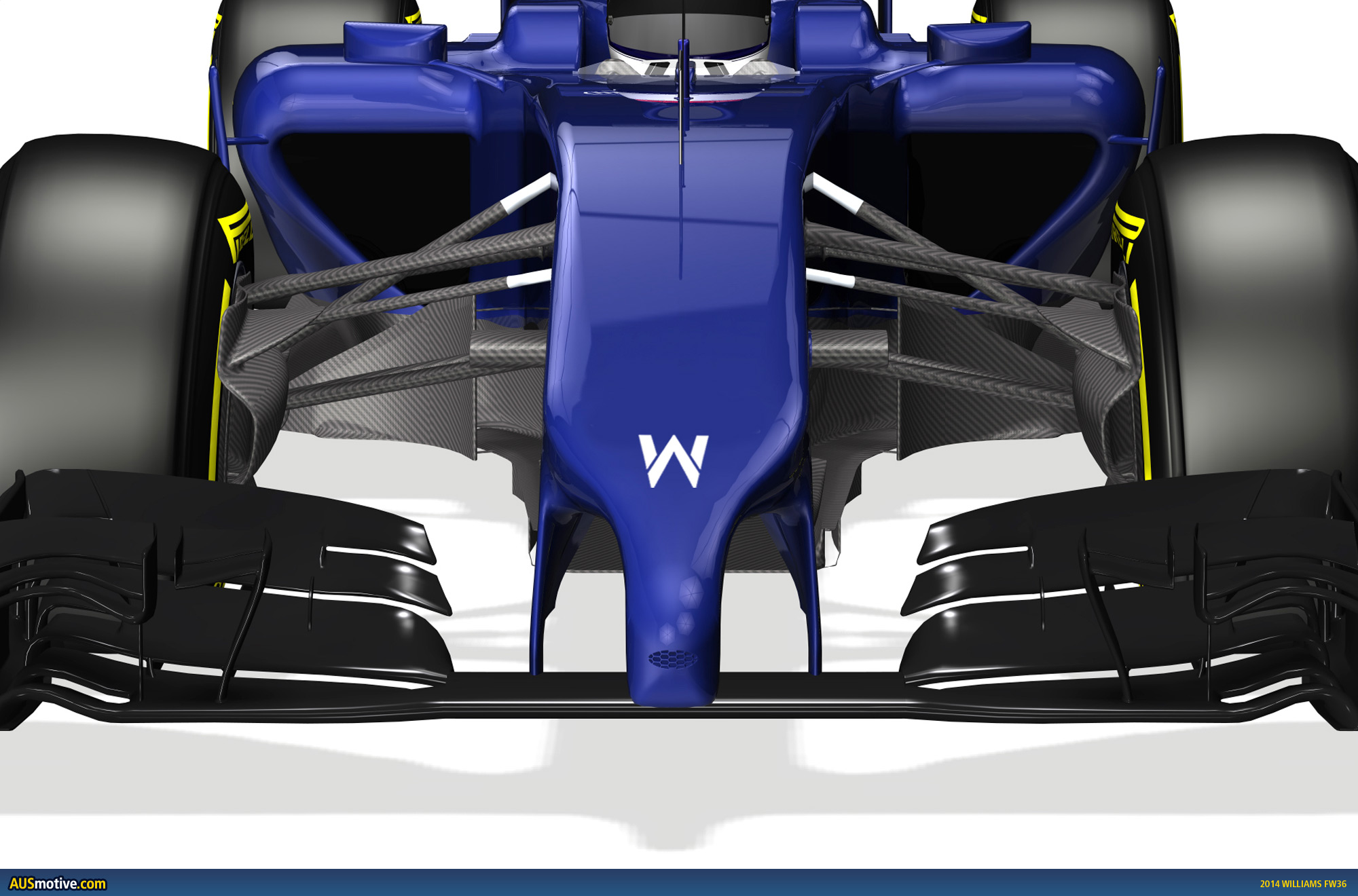

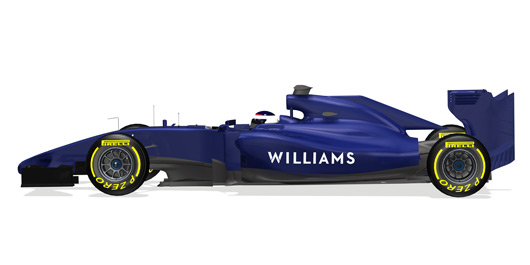

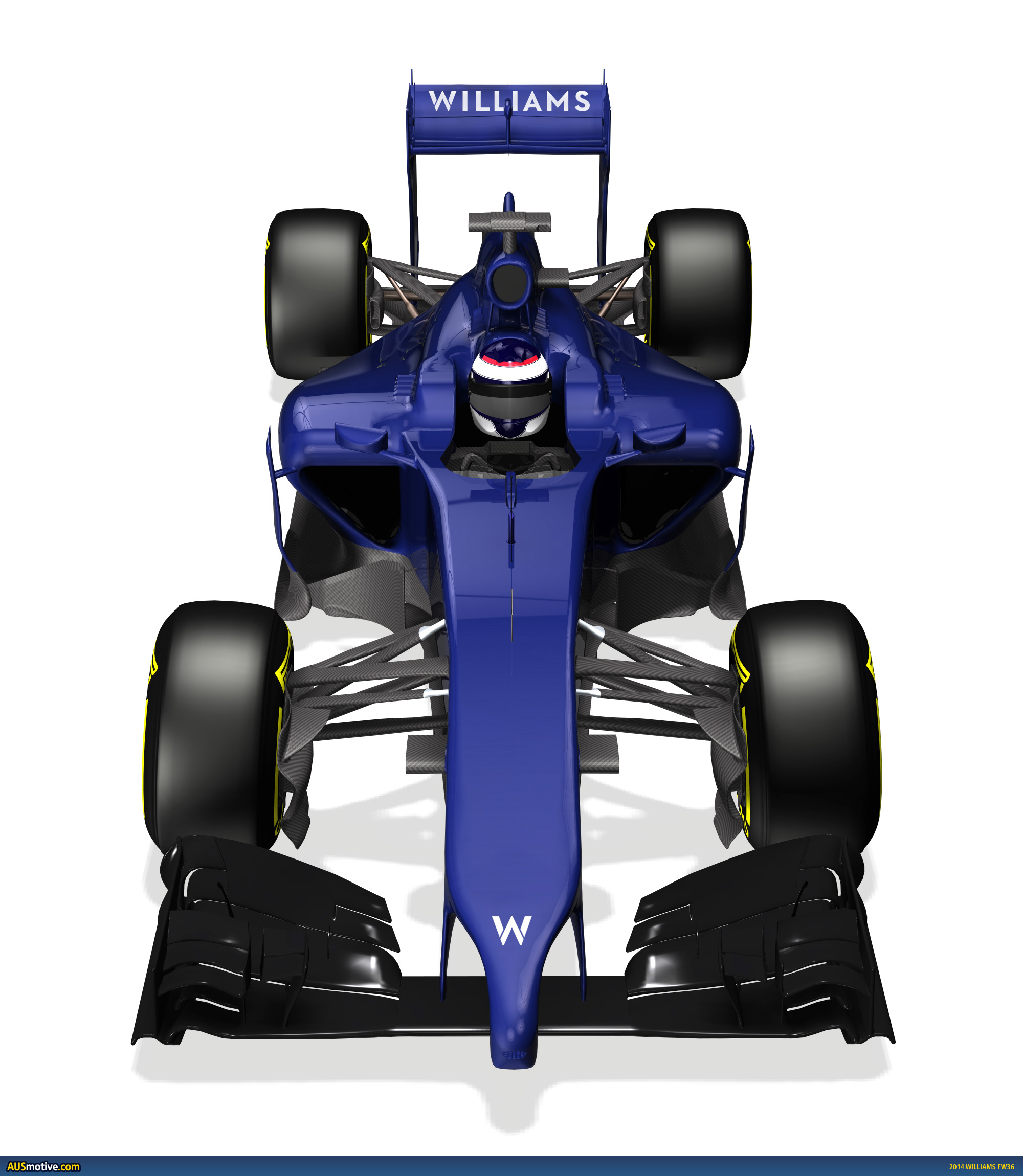

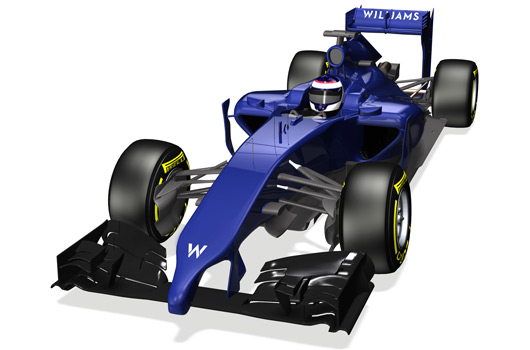

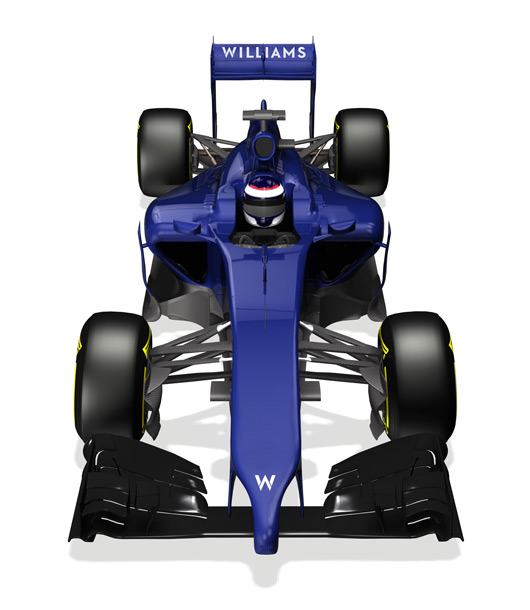

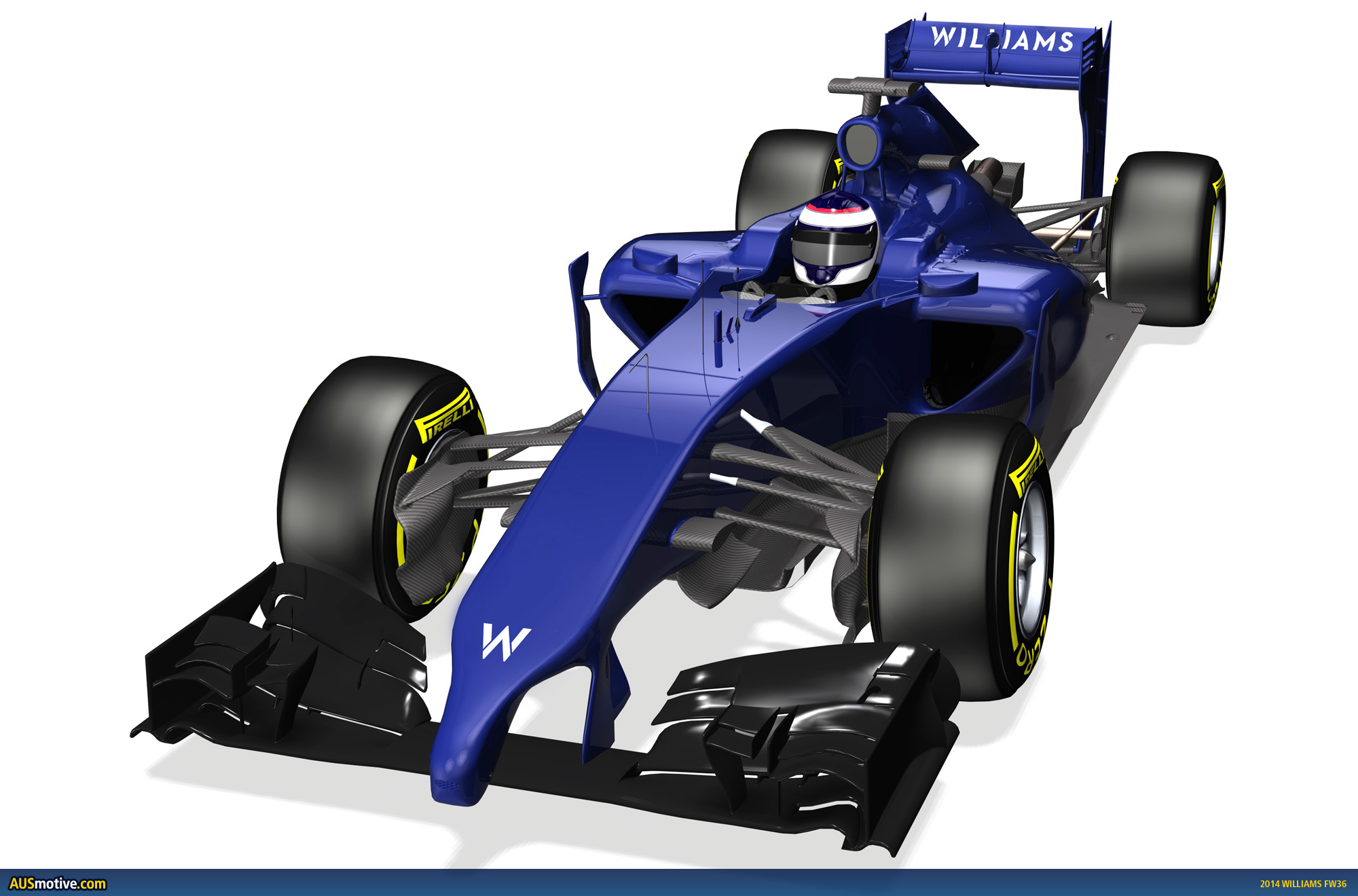

Williams has revealed a series of renderings showing their 2014 F1 car, the FW36. And as you can see we have confirmation of our first finger-style front nose. It looks a bit like an anteater, too.

There’s a couple of firsts for Williams here: it’s the first time the team has worked with a Mercedes-Benz engine power unit and the first time they’ve run an 8-speed gearbox.

Chief Technical Officer, Pat Symonds, explains some of the challenges in designing this car: “There’s a lot more technology on the cars this year. We’ve had turbo-charged engines in F1 before; what’s different this time is that it is much more than just an engine change, it is a completely different system. We’ve gone from a slightly hybridised normally aspirated engine to a fully integrated hybrid power unit with novel technology at its heart.

“Overall the cars will need more cooling this year. The demands on water and oil cooling may be slightly diminished, but the ERS system is significantly more powerful and hence needs more cooling. We also have to cool the charge air from the turbocharger compressor which requires a substantial intercooler.”

Williams has given a rough timeline for the design of the new car, which we’ve listed in dotpoint form below:

• CAD data for 2014 power unit received from Mercedes mid-way through last season
• FW36 design phase completed by mid-September 2013
• New gearbox run on dyno in early-November 2013
• Launch spec aero packaged finalised in early-December 2013
• Transmission mated to power unit on dyno in December 2013
• FW36 crash test passed before Christmas 2013
• Melbourne-spec aero package approved in early-January 2014

UPDATE 29 January: Williams has tweeted a pic of the car from the team’s pit garage at Jerez (see below).

And here she is!! Hope you like her! #FW36 #Jerez pic.twitter.com/2bivKvH0Ke

— Williams F1 Team (@WilliamsF1Team) January 28, 2014

Williams reveals first image of the Williams Mercedes FW36

23 January 2014. Grove, UK. Williams today released the first images of its 2014 challenger: the Williams Mercedes FW36. The FW36 is one of the most technologically advanced Formula One cars produced by Williams. It is the culmination of more than two years research and development by the team’s technical departments in Grove and it incorporates the power unit from the team’s new partner, Mercedes-Benz.

“There’s a lot more technology on the cars this year,” says Williams Chief Technical Officer Pat Symonds. “We’ve had turbo-charged engines in F1 before; what’s different this time is that it is much more than just an engine change, it is a completely different system. We’ve gone from a slightly hybridised normally aspirated engine to a fully integrated hybrid power unit with novel technology at its heart.”

To meet the challenges of the new power unit, Williams signed the deal with Mercedes Benz High Performance Powertrains midway through last season. The team received the first CAD (Computer-Aided Design) data for the power unit at the end of May, at which point the detailed design of the FW36 could begin to be finalised.

“This is the first time that Williams has worked with Mercedes in F1 and we’ve been very impressed,” says Symonds. “Their professionalism and commitment have been notable and we’re as confident as we can be that the power unit will be competitive.”

The design phase of the FW36 was completed by mid-September, by which time the team had found solutions to the major challenges presented by the regulations. Cooling, weight, a new gearbox and aerodynamic changes are just some of the areas of focus.

“Overall the cars will need more cooling this year,” says Symonds. “The demands on water and oil cooling may be slightly diminished, but the ERS system is significantly more powerful and hence needs more cooling. We also have to cool the charge air from the turbocharger compressor which requires a substantial intercooler.”

The FW36’s gearbox ran on the dyno for the first time at the beginning of November, before running with the full power unit several weeks later. It’s the first eight-speed gearbox in Williams’ history.

“We finished the gearbox relatively early,” says Symonds. “It’s completed a lot of running on the test rig and at Mercedes HPP in Brixworth, but you can’t take reliability for granted. It’s a completely new ‘box and it has to cope with a lot more torque than was the case with the V8.”

The weight of the car, when combined with the FIA’s ever more stringent crash tests, has been another challenge of the 2014 rules. But the FW36 was one of the first cars to pass its crash tests prior to Christmas.

“The build of the new car has gone remarkably smoothly,” says Symonds. “But it’s been a challenge to get the car down to the weight limit. It’s been achievable, but it hasn’t been easy because the new power unit is heavier than the outgoing V8.”

The launch-spec aerodynamic package was finalised in the first week of December, with an upgrade package for Melbourne’s season-opener signed off in early January.

“F1 is still going to be an aerodynamic formula in 2014,” says Symonds. “There are some significant changes: the nose is lower than last year and the front wing is narrower, which means the end plates are now more shrouded by the front tyre. The rear wing isn’t as deep as last year and the beam wing below it is no longer permitted, and we’ve also lost the ability to use the exhaust to enhance aero performance.”

Until the car begins testing next week the team won’t know how its design solutions will translate onto the track, but Symonds is confident that Williams has done enough to move up the grid after a disappointing 2013 season.

“I’m confident that we’ll be closer to the front aerodynamically than we were last year,” says Symonds. “Our ambition for the year ahead is to have a strong 2014 season.”
